Supported until neoTextil v8.0
neoTextil provides more plugins for converting import and export files for specific extensions and image modes. As sub-plug-ins of neoTextil, they will be installed with neoTextil installation in the Adobe® Photoshop® Plug-in folder.
The extension plug-ins are used for Stork file format conversions such as PUB, GRT, and SEP, which require mechanical engraver and plotter output parameters.
nT Stork PUB

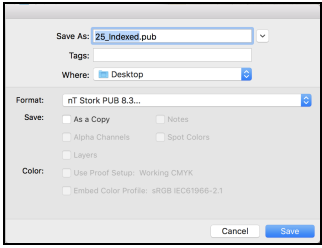

Pub format is supported for image modes: RGB, Indexed, Grayscale, and Bitmap. When saving the opened file in Photoshop from the menu File|Save As... select the extension type in the format tab.

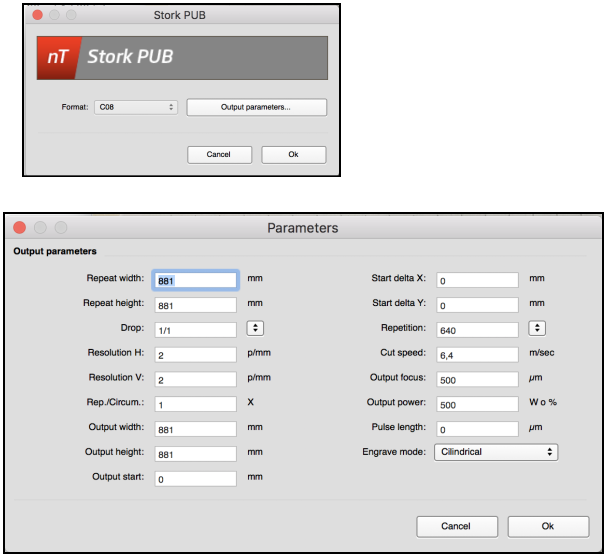

Before the file is saved it is asking for the output parameters. The format is C24 and C15 for RGB images, C08 for indexed and other modes. Click on 'Output parameters...' and add or modify required the parameters.
nT Stork GRT

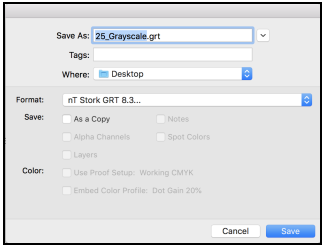

GRT format is supported for image mode Grayscale. When saving the opened file in Photoshop from the menu File|Save As... select the extension type in the format tab.

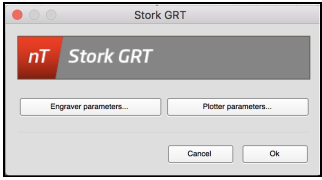

Before the file is saved it is asking for the engraver and plotter parameters. Click on 'Engraver parameters...' and 'Plotter parameters...' to add or modify the required parameters.

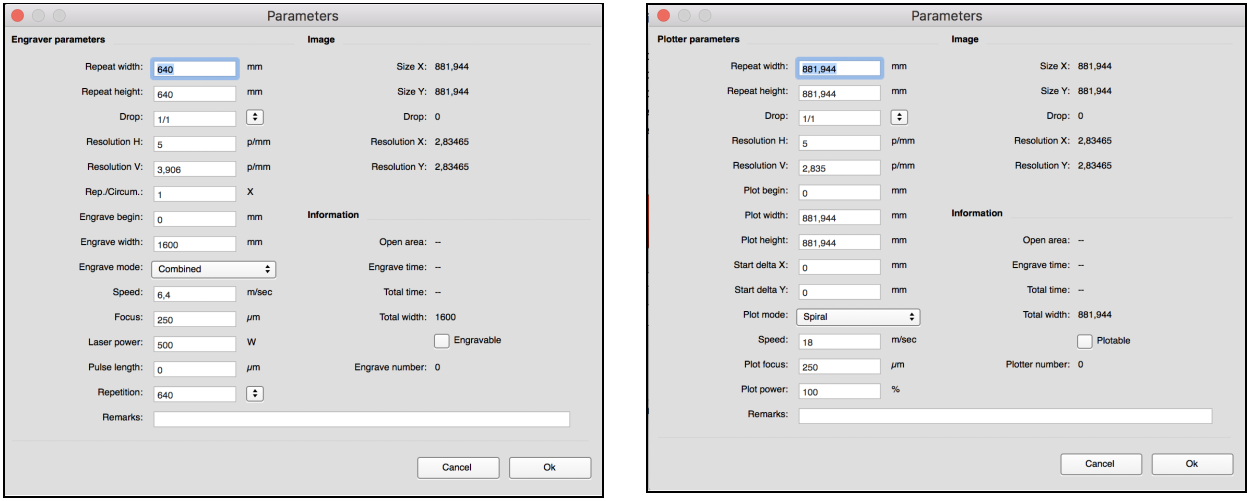

Engraver parameters: Plotter parameters:
nT Stork SEP

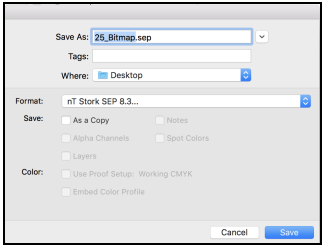

SEP format is supported for image mode Bitmap. When saving the opened file in Photoshop from the menu File|Save As... select the extension type in the format tab.

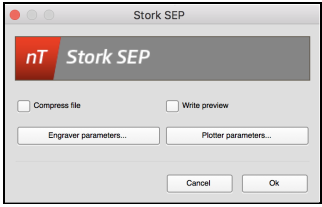

Before the file is saved it is asking for the engraver and plotter parameters. Click on 'Engraver parameters...' and 'Plotter parameters...' to add or modify the required parameters.
Engraver parameters: Plotter parameters:
